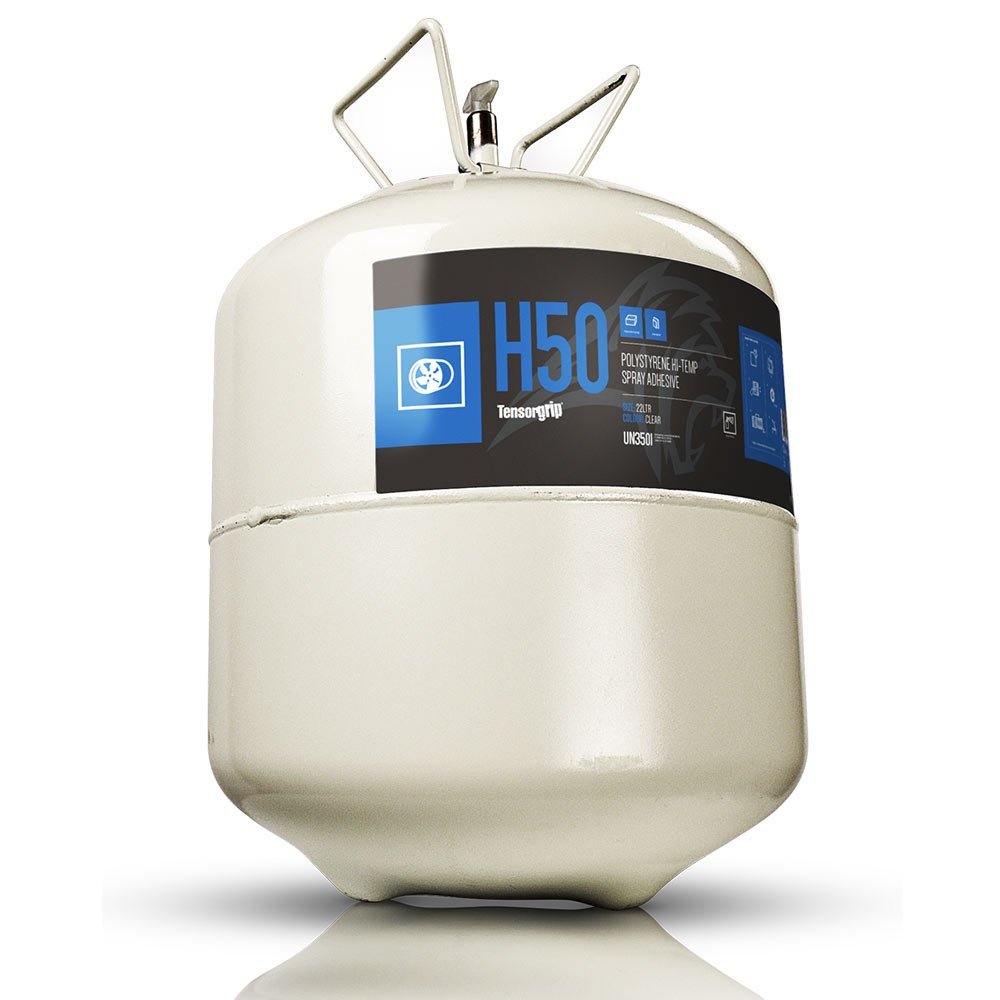

TensorGrip® H50 is a 22L / 22Kg pot which is a hi-temp, polystyrene compatible spray adhesive developed to bond insulation materials to themselves and to a variety of substrates, including MDF, chipboard, plywood and many other timber sheet materials.
H50 can also be used for bonding to sheet metal substrates where surface preparation is important, along with being suitable for polystyrene and foam insulation materials where a higher temperature is required.
Spray adhesive consistancy
This consistancy of this contact adhesive is web like.
Spray adhesive uses information
When it comes to this contact adhesive it can be used to bond materials on to the following materials.
- Polystyrene and foam insulation materials where a higher temperature is required
Coverage information for this spray glue
This contact adhesive can cover an area up to 80M2.
Advantages of using L22
L22 has a number of advantages. Some of these are:
- Excellent rubber bonding properties
- Heat resistant up to 106°C
- Fast drying with good open time
- Excellent bond adhesion for fabrics, leather, carpet, foam, etc. to metal, hard plastic, plywood, etc...
Canister Evacuation and Render Safe Procedure
Please use the following information when getting rid of an empty canister.
NOTE - Always direct valve outlet away from person during the following procedures
Step A. EVACUATION
- Ascertain from weight of canister whether empty of liquid residues
- If liquid residue is remaining, invert canister, open valve a minimal amount to allow gradual pressure release, leaving inverted until all pressure is released. Once pressure appears to be released, keeping inverted, gradually open valve fully, to ensure no blockage has occurred in valve, and ascertain evacuation complete.
- If empty of liquid, invert canister and fully open valve to release pressure, and ascertain evacuation complete.
- Once empty then proceed to part B to puncture them.
Step B. RENDER SAFE PUNCTURING
- Check, by feel, whether canister contains liquid residues. If yes, take additional care to avoid spillage during following operations.
- Place evacuated canister in fly press jaws. Base end forward.
- Close operator protective guard. Wind chisel point down until canister is fully pierced, then up to release. Remove canister from fly press.
- Alternatively, using a nail punch, puncture the bung on the canister neck (see image below)
- If canister contains liquid residues, and still pressurised pierce canister twice and then empty into appropriate bulk waste liquid container.
- Disposal via waste recycling provider.
Save when you buy in bulk
We offer bulk buying options with this sprayable glue. So the more you buy, the more you save.
All the information is based on practical experience and is published in good faith. However, because we have no control over the manner or conditions in which our products are used, or over work undertaken or end product manufactured by the purchaser, we cannot accept liability for results.
Responsibility for ascertaining the suitability of products for his purposes rests with the purchaser.All conditions, representations, statements, warranties or guarantees whatsoever, whether express, implied or statutory, in respect of any goods manufactured, sold or supplied by us are hereby expressly excluded and we accept no liability in respect of any claim for damage or consequential loss caused to any property arising directly or indirectly out of the use of our products or goods.
|Solids Contents||30.0% +/- 2.0%|
|Viscosity||300 cps +/- 50 cps|
|Specific Gravity||0.66 to 0.70|
|Failure Temprature||> 106°C|
|Colour||Clear or Green|
|System Flammability||Flammable adhesive with a flammable propellant|
|Dry time||1-3 mins|
Contact canister storage and canister change over instructions
To change over the canister turn the valve on the canister into the off position, then spray out any remaining adhesive left in the hose.
Next, disconnect the spray hose and gun from the canister.
Reconnect the spray hose to a canister of cleaning solvent (sold separately) and spray out until liquid is clear - which indicates that the hose and gun are clean.
If you choose to leave the hose and spray gun on the canister, leave the valve on the canister open, and do not disconnect the hose & gun from the canister.
Close and lock the spray gun.
Handling & Storage Information
- Consult Material Safety Data Sheet prior to use
- DO NOT store at temperatures over 50°C
- Avoid exposure to direct sunlight
- DO NOT store directly on a concrete floor
- For optimum performance, store at 18°C during use; but, it must always be above 10°C
- When connected, keep the valve open and hose pressurised at all times
- DO NOT close the valve until ready to connect to new cylinder
- Release pressure in hose before disconnection
- Always test product to determine suitability for your particular application prior to use in production
How to use this contact spray adhesive
This glue is designed to be applied to two surfaces to be bonded together. Consequently, for best results, the temperature of the adhesive and the surfaces being bonded should be between 60°F - 80°F (16°C - 27°C).
Use with adequate ventilation, and when possible we recommend shaking the canister well before using.
Attach and secure the hose tightly onto the spray gun with required tip, and attach the other end of the hose onto the canister.
Make sure the hose-valve connections are securely tight, and then open the valve on the canister slowly and fully, checking for leaks during this process. Then once open unlock the trigger on the spray gun to start spraying. It is as simple as that.
Prior to use, please check compatibility by spraying a small test patch of the adhesive on the substrate, and this glue may degrade some substrates.
- Make sure that surfaces are clean, dry and free from dirt, dust, oil, loose paint, wax or grease, etc...
- Spray about 10-20 cm (4" – 8") away at a 90° angle to the surface, applying a uniform, even coat of adhesive to obtain 80% to 100% coverage of the surface. If necessary, spray another coat of this adhesive in areas that appear to need more adhesive.
- Spray both surfaces to be bonded, one surface vertically and the other surface horizontally
- Allow 2 - 3 minutes for the adhesive to tack off until no adhesive transfers to the knuckle when touched.
- Adhere surfaces and press together with adequate pressure.
- roller is recommended to apply a uniform pressure to achieve maximum strength.
- Allow 24 hours for the adhesive to fully cure.
- If the spray tip clogs, unscrew the spray tip from the gun and clean with solvent such as lacquer thinner or acetone. Do not use a pin on the spray tip orifice
