The Pressure Sensitive Adhesive Specialists in Adhesive Tapes & Glues
PSA8550 is a: 19mm x 25 Metres Coroplast Wire Harness Tape. This wire harness tape is designed to keep your wiring together and out of the way.
This tape is ideal for being used in the automotive industry, and has been officially approved for use on the following models: BMW, Changan, Daimler, Fiat, Ford, Vauxhall / Opel, General Motors, Mazda, Nissan, Renault, Volkswagen to name a few.
This tape has numerous benefits. These are that it is:
- Weather flexible
- Abrasion resistant
- Heat resistant
- Flame retardant
- Halogen free
- Tearable by hand
Tape specification
RT-Version (reverse tape / spiral)
Coroplast's RT wire harness tapes are wrapped adhesive on adhesive so that only the carrier and not the adhesive comes into contact with the harness.
Application uses
This tape is designed as a wire harness and control tape. This make it ideal to keep wires grouped together.
Carrier Information
The carrier for this tape is a a stitch-bonded PET (non-woven).
Size information
This tape is 25 metres in length and 19mm wide, and 0.45mm thick.
Adhesive information
Then adhesive on this tape is a synthetic rubber.
Not sure if this wire harness tape is right for you?
If you are not sure this cable wrap tape is right for your individual requirements please do not hesitate to contact our friendly sales team and we will be happy to help you.
How to apply this tape
Surfaces must be clean, dry, free from grease and dirt.
We recommended using a cleaning agent such as: Propan-2-ol.{IPA}.
Please note the manufacturer's safety instructions should be followed and customers are recommended to ensure compatibility of the solvent and their substrate. Ideal bonding substrates are those which are: clean, dry, flat, smooth, dust free and non-porous.
Low temperatures may increase the risk of condensation, reducing the tack of the product. As a result, life expectancy will vary with temperature and humidity.
This tape may be applied by hand direct from a roll applying even pressure.
Technical Information
| Specification | Technical Values |
|---|---|
| Carrier | Stitch-bonded - PET (Non-woven) |
| Adhesive | Synthetic rubber |
| Thickness [mm] | 0.45 |
| Tear strength [N/cm] | 50 |
| Elongation at break [%] | 20 |
| Adhesion to steel [N/cm] | 4.5 |
| Temperature resistance Upper [°C] | 105 |
| Temperature resistance Lower [°C] | -40°C |
Do you require a Certificate of Conformance and traceability?
If you require a Certificate of Conformance, please contact us after ordering (either by phone or email) and we will get this sent out to you with your order.
Shipping Information
PSA Solutions offers the following shipping options:
- Mainland UK shipping for orders over £30 (excluding VAT, Glue Pots, and shipping) is free
- Mainland UK shipping for orders under £30 (excluding VAT, Glue pots and shipping) is only: £6.75
- Signed for - up to 3 working days is from only: £6.75
- Next day delivery - when ordered before 12pm is from only: £11.99
- Using your own carrier - your items will usually be available for collection after 48 working hours, simply contact us with your collection date
- Europe starts from only: £22.20
- US, China, Middle East & South East Asia only: £43.78
- Rest of the world from only: £61.58
Returns Information
If your goods are damaged in transit or deemed faulty due to factors beyond our control, we will advise you to return them. If you do not require replacement goods to be dispatched to you, we may offer a full refund. We provide this Returns Information to inform you of your responsibilities in the event of damaged or faulty goods. PSA Solutions reserve the right to apply charges for handling and transit on such occasions. Checking the goods in the presence of the courier and noting any damages when signing is your responsibility. Alternatively, just a signature will confirm that you have received the goods in good order, and we may not consider refunds thereafter.
Product Questions
Product questions for our: 50 Metres Automotive Double Sided Polyethylene Foam Tape (A different size of this product)
- I need to fix an exterior door trim strip to my fiat 500 - would the automotive double sided polyethylene tape be the best for this? - Jonathan
- Yes, these products are ideal providing the surfaces have both been cleaned with alcohol wipes. Just to degrease - Ian, Product Support Manager
Product questions for our: 19mm x 25 Metres 837x Coroplast Tape for Bundling Automotive Cable & Wire Sets (A different size of this product)
- Hello, I'm interested in the Coroplast 837x tape, 25mm version. Is it available? If yes, what's the price for 1250m (50 roles) incl. shipping to Stuttgart/Germany? Thank you for your answers in advance - Richard
- Hi Richard, We can supply the 837x in 25mm, and for 50 roll orders your price would be £4.91 per roll - Ian Product Support Manager
Product questions for our: 55 Metre Fine / Thin Line Masking Tape (A different size of this product)
- Hi, I'm looking for a fine line tape to use with resin (that's suitable up to 120 degrees) I'm looking to get both 3mm and 6mm, will this product cope with high temperatures? Many Thanks Danni
- Hi Danni, the working temperature of this tape is 150 � 180�C so it should be fine for your application Danni - Ian Product Support Manager
- Is this tape suitable for masking the grouting between wall tiles? I would like to paint soe rather old fashioned tiles. Thank you, Sue
- Hi Sue Thankyou for this enquiry. The fine line masking tapes are normally used in Automotive applications and so used on high energy surfaces such as metal. I would therefore recommend trying the product for this application but would not be able to advise on its suitability - Ian, Product Support Manager
- Can I use Fine Line Masking Tape to re-apply plastic crome car badges to the rear of my car ? - James
- Hi James, no you will need the automotive grade double sided foam tape, try this link - Ian, Product Support Manager
Similar Products
50 Metres High Temperature Automotive Masking Tape

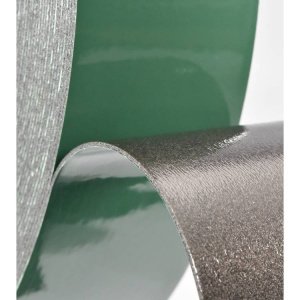

50 Metres Automotive Double Sided Polyethylene Foam Tape
