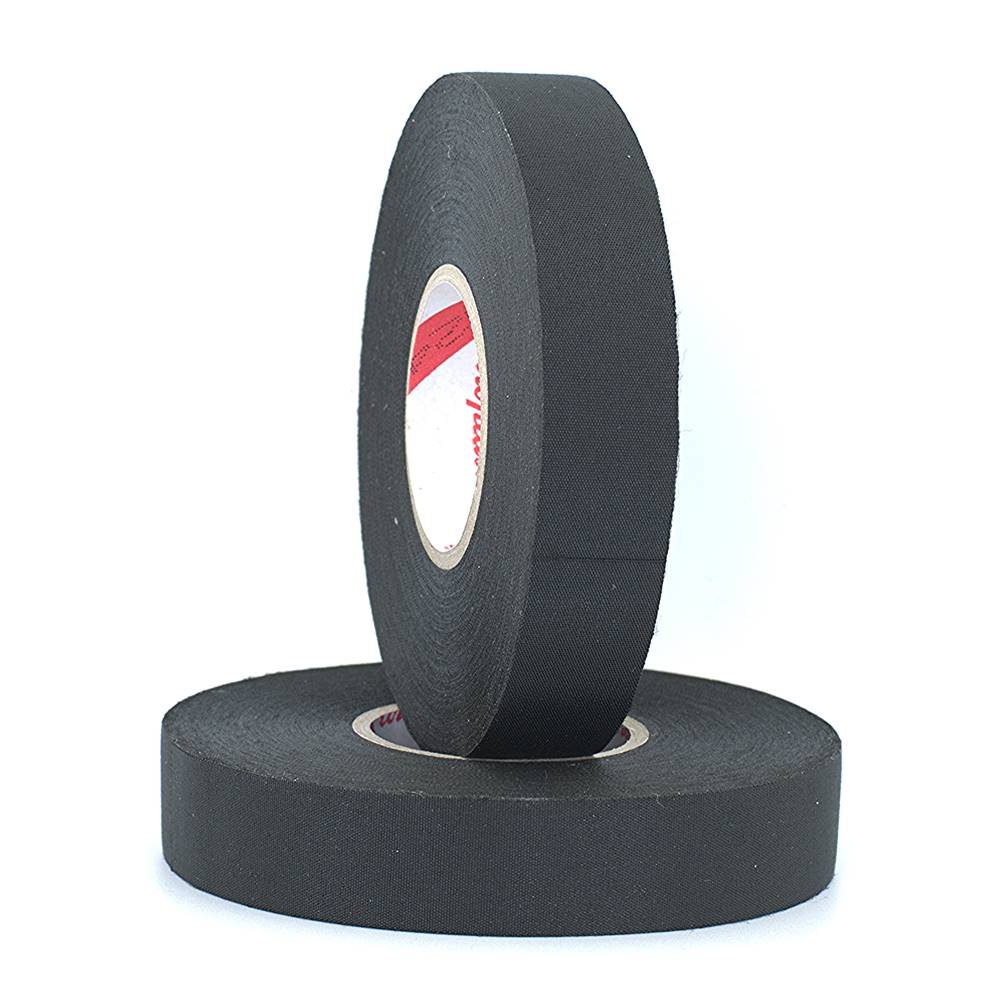

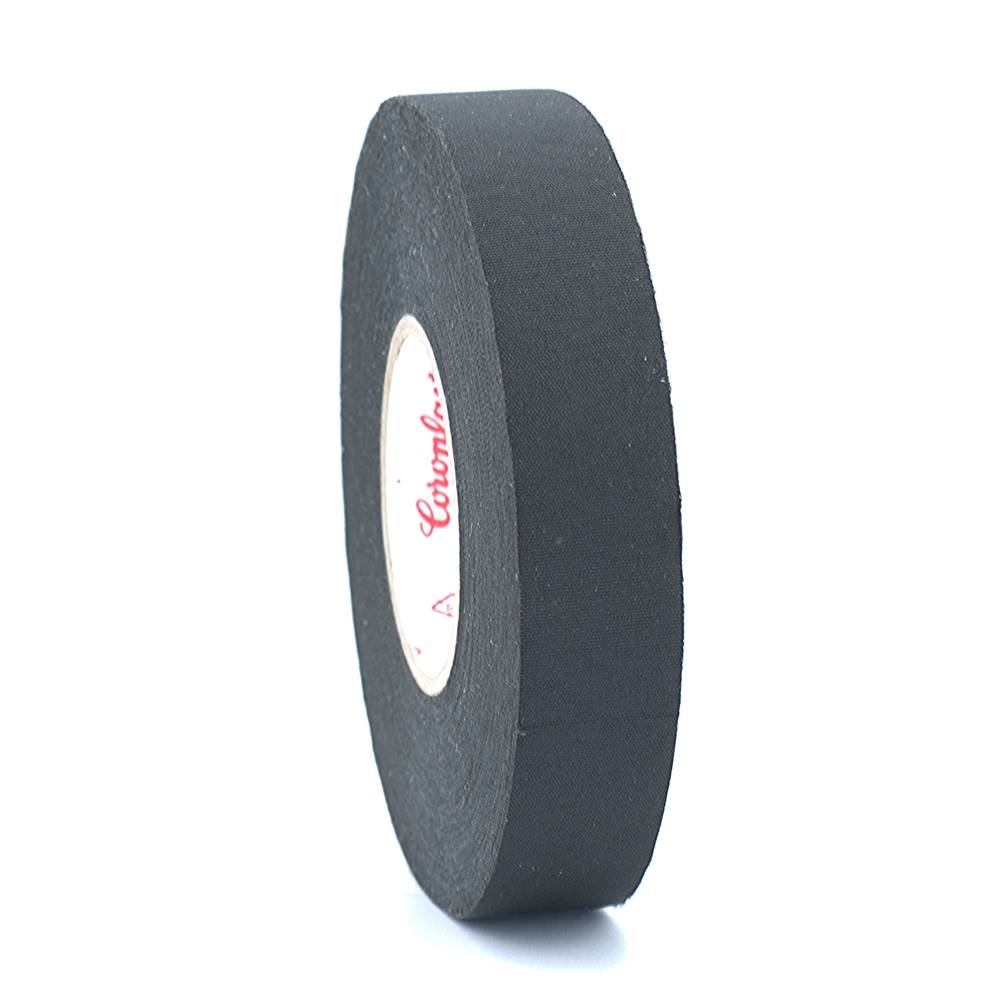

This Coroplast heat resistant textile polyester tape, is ideal for solid and spiral taping of wire harnesses.
Alongside this, this Solvent-free acrylic adhesive tape is suitable for manual application, and has excellent resistance to motor vehicle operating fluids (e.g: diesel fuel, super fuel for up to: 2 weeks).
Height, size and length information
Main features of this Coroplast tape
This tape has a: strong adhesion and is resistant to both: low and high temperatures, with a heat-resistance for 3000 hours at 125°C - up to 150°C.
Depending on the cable material it is suitable for short periods of 240 hours at 175°C.
Along with this, this tape is both: Solvent-free and abrasion resistant; while being Rot-proof and Resistant to aging.
This wire bundling tape is also: PVC-compatible, smooth and has good dielectric characteristics, with outstanding resistance against chemicals - e.g. Diesel / Gasoline - of more than two weeks.
|Carrier:||Woven polyester fabric|
|Thickness:||0.3 mm DIN EN 1942 mm 0.27 ± 0.03|
|Other widths available on request:||9mm, 15mm, and 25mm|
|Tensile strength:||DIN EN 14410 N/cm > 200|
|Elongation at break||DIN EN 14410 % > 20|
|Adhesion to steel:||DIN EN 1939 issued 11/96 N/cm > 3,0|
|Unwind force* (manual) from roll:||DIN EN 1944 N/19 mm 2,0 – 9,0*|
|Unwind force* (machine) from roll:||DIN EN 1944 N/19 mm 1,0 – 6,0|
|Temperature range:||-40°C up to +150°C|
|Backing:||Black PET cloth|
This tape is designed for bundling and wrapping of cable sets and wire harnesses, and due to its controlled unwind force a good processing in ensured.
This tape should be stored at about 20°C to 30°C with a maximum 65% humidity in its original packing.
Surface preparation is paramount for achieving the required bond when using this pressure sensitive adhesive. Read our Surface Preparation and Application Guide for more information on how to apply this automotive tape.
Require the Material Safety Data Sheet (MSDS) for this Coroplast tape?
If you require the Material Safety Data Sheet (MSDS) for this automotive tape please do not hesitate to contact us and we will be happy to send it to you.
Do you require a Certificate of Conformance and traceability?
If you require a Certificate of Conformance, please contact us after ordering (either by phone or email) and we will get this sent out to you with your order.
PSA Solutions offers the following shipping options:
- Mainland UK shipping for orders over £30 (excluding VAT, Glue Pots, and shipping) is free
- Mainland UK shipping for orders under £30 (excluding VAT, Glue pots and shipping) is only: £6.75
- Signed for - up to 3 working days is from only: £6.75
- Next day delivery - when ordered before 12pm is from only: £11.99
- Using your own carrier - your items will usually be available for collection after 48 working hours, simply contact us with your collection date
- Europe starts from only: £22.20
- US, China, Middle East & South East Asia only: £43.78
- Rest of the world from only: £61.58
If in the unfortunate event that your goods are damaged in transit - or are accepted by PSA Solutions as being faulty due to factors beyond our control - you will be advised to return such goods and a full refund may be offered should you not require replacement goods being dispatched to you. PSA Solutions reserve the right to apply charges for handling and transit on such occasions. It is your responsibility to check the goods in the presence of the courier, and if required note when signing that goods have been damaged. Alternatively just a signature will confirm that goods have been received in good order and that thereafter refunds may not be considered. Please contact us if you do experience any difficulties and we will try our best to help you.
- Hello, I'm interested in the Coroplast 837x tape, 25mm version. Is it available? If yes, what's the price for 1250m (50 roles) incl. shipping to Stuttgart/Germany? Thank you for your answers in advance - Richard
- Hi Richard, We can supply the 837x in 25mm, and for 50 roll orders your price would be £4.91 per roll - Ian Product Support Manager
Reviews for this product from confirmed past customers
To qualify to be added below, the reviewer must have purchased this product from us.
Our score is 5/5. This tape provides a ‘factory’ finish to our cable harnesses / looms which matches the product we sell. PSA are fast and friendly when ordering over the phone
