The Pressure Sensitive Adhesive Specialists in Adhesive Tapes & Glues

19mm x 25 Metres Coroplast Heat Reflection Tape 1238x

Coroplast 1238x is a superior heat reflection/shielding tape that has been tested to 3000 hours at 125C. Its short term temperature resistance has been measured at 240 hours at 175C. This product is designed to protect looms and harnesses in heat sensitive areas. Read the full product description

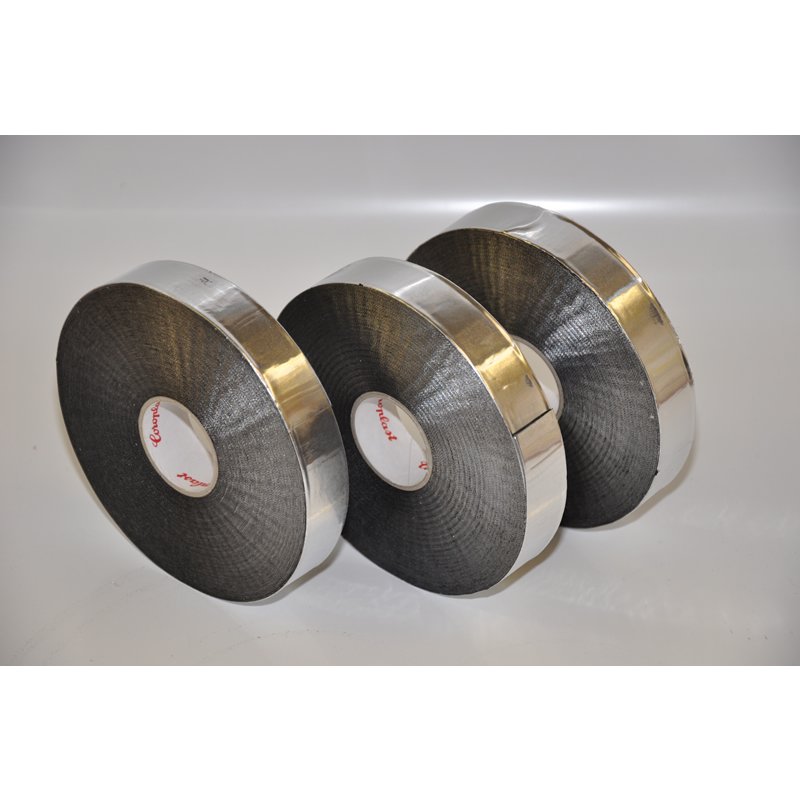

Image of 19mm x 25 Metres Coroplast Heat Reflection Tape 1238x

Additional product images

Image of 19mm x 25 Metres Coroplast Heat Reflection Tape 1238x

Image of 19mm x 25 Metres Coroplast Heat Reflection Tape 1238x

Buy in Bulk & Save

1 Roll Only: £15.48
Excluding Tax: £12.90
Price / Metre: £0.52

Save with Bulk Buying Options
Prices shown below Exclude Tax

How many would you like?

View other sizes of this product

Credit Cards Paypal

PSA code: caro10112 | Manufacturer: Coroplast | Product condition: New | Stock status: In stock

Product datasheet View this product's datasheet

Ask us a question about this product
Get a bespoke quote for this product

Orders are dispatched within 1 - 2 working days

Open your account today for 5% off your 1st order

Free standard mainland UK shipping
on all orders over £30 (excluding VAT)

Free advice to make your products last longer

Variations of this product

Image of 19mm x 25 Metres Coroplast Heat Reflection Tape 1238x19mm x 25 Metres Coroplast Heat Reflection Tape 1238x
PSA Code: caro10112
Buy in bulk and save
1 Roll Only: £15.48
Excluding VAT (tax): £12.90
Price / Metre: £0.52

Height, size and length information

19mm wide - 25 Metre wide

PSA Solutions Coroplast 1238 X is a Heat reflection tape and has the following Characteristics:

  • Excellent heat reflectivity Due to heat reflection the inner temperatures of a harness wrapped with 1238X are significantly lower than with unprotected harnesses!
  • Resistant to heat for 3000 h at 125C - 150C, for short times 240 h /175C, depending on cable material
  • Rotting resistant
  • Tear resistant
  • Abrasion resistant
  • Aging resistant
  • Good resistance to chemicals
  • Halogen-free
  • Resistant to low temperatures
  • Solvent-free
  • EP1615238 B1

Applications Coroplast 1238 X is a Heat reflection tape include:

  • For wrapping of cable sets and cable harnesses to prevent heat damage.
  • Fixation of ends recommended.

Coroplast 1238 X is a Heat reflection tape storage information:

Store at about 20C to 30C and max. 65% humidity.

Coroplast 1238 X is a Heat reflection tape construction:

  • Backing material: Special laminate aluminum or PET cloth, silver
  • Adhesive: Acrylic

Coroplast 1238 X is a Heat reflection tape technical Data:

  • Property Norm unit Value Thickness DIN EN 1942mm approx. 0.28
  • Elongation at break DIN EN 14410 % > 20
  • Tensile strength DIN EN 14410 N/cm > 200
  • Adhesion to steel DIN EN 1939 from 11 / 1996 N/cm > 1.5
  • Temperature resistance LV 312C -40C to +150C
  • Burning behaviour ISO 3795 / FMVSS 302 - class A, non combustible
  • Inner temperature [C] unprotected 1238X

Our products are the result of fundamental research. They correspond to the latest technical standard. For their useful application we give data and technical information to the best of our knowledge but, however, without any warranty. In special cases the user shall make his own tests to determine the suitability of the products for his purpose.

Not sure if this Coroplast tape is correct for your requirements or require the Material Safety Data Sheet?

If you require the Material Safety Data Sheet (MSDS) for this heat reflection tape, or if you are not sure if they are right for your requirements, please do not hesitate to contact us and we will be happy to send it to you and advise you on your options.

Preparation advice

Surface preparation is paramount for achieving the required bond when using this pressure sensitive adhesive. Read our Surface Preparation and Application Guide for more information.

Do you require a Certificate of Conformance and traceability?

If you require a Certificate of Conformance, please contact us after ordering (either by phone or email) and we will get this sent out to you with your order.
