The Pressure Sensitive Adhesive Specialists in Adhesive Tapes & Glues

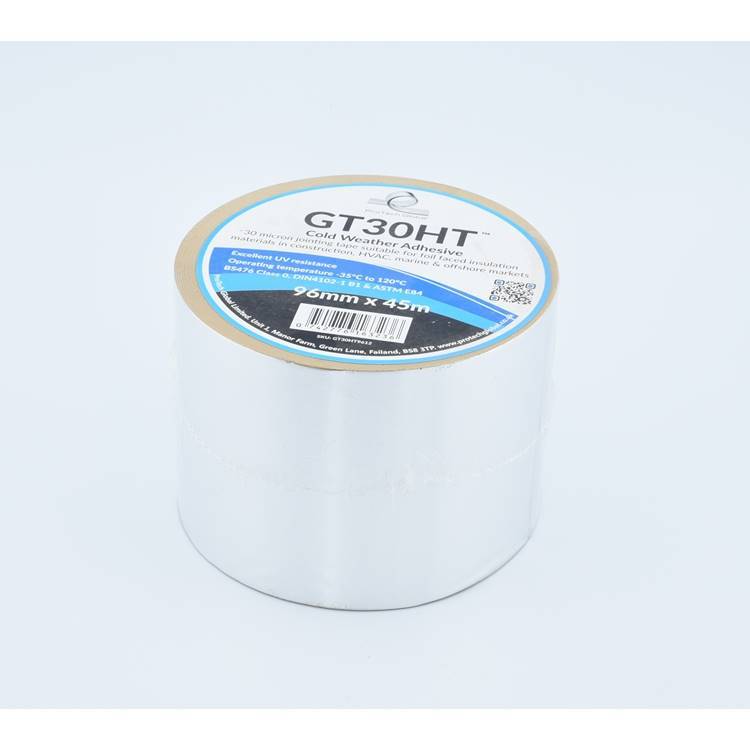

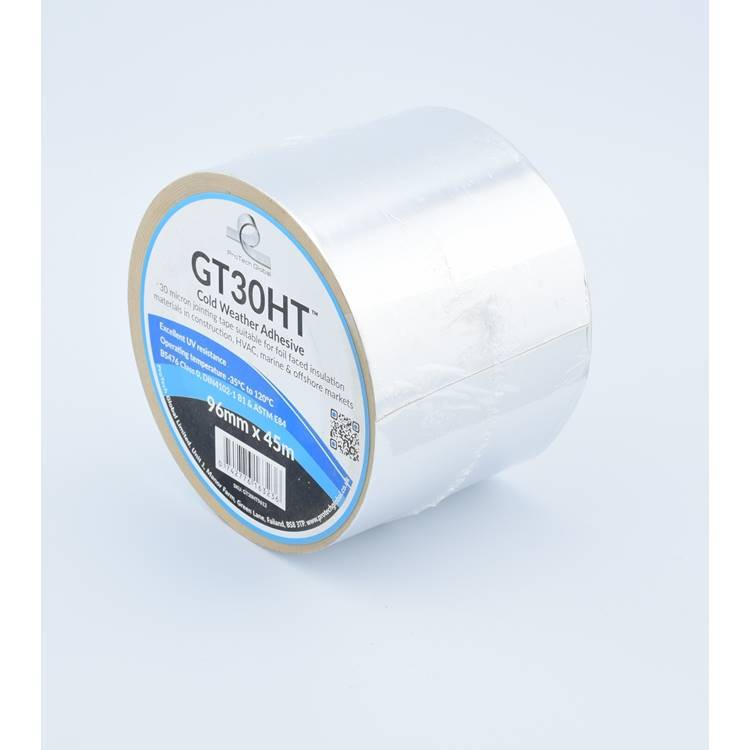

PSA1517CWC is a 96mm x 45 Metre 30 Micron Cold Weather Aluminium Foil Duct Tape is a high strength foil tape that carries the Venture tapes patented cold weather adhesive system. This is a vapour sealing tape for foil faced insulation products.
The patented adhesive system, makes it ideal for bonding at low and high temperatures; as well as environments of high humidity. Consequently, this foil tape is constructed specifically for use in extreme environments. This tape has been field tested for applications in temperatures as low as -10? (-2°C) and stable up to 250°F (12°C).
The fact this aluminum foil tape is ideal for extreme environments, ensures secure, reliable bonding in all conditions. As well as being secure and reliable, this foil tape continues to self cross-link after application. What this means to you, is that the bond strength increases over time and ensures secure and reliable splices.
Product Construction
Product uses:
This Cold Weather Aluminium Foil tape is ideal for the following uses:
- Electrical work
- Heating, ventilation and air conditioning (HVAC) systems
- The construction industry
- Sealing off vapours in fiberglass duct board and sheet metal ducts
- Wrapping high temperature sensitive materials such as: insulation cables and insulation instruments
- Other applications
Ideal for jobs requiring the following:
Moisture resistance
Our 'cold start' patented acrylic adhesive is solvent based and resistant to Moisture. What this means to you, is that can be applied even in cold damp conditions.
Chemical resistance
Our 'cold start' patented acrylic adhesive is solvent based and resistant to chemicals when in situ.
Flame resistance
Our 'cold start' patented acrylic adhesive is solvent based and flame resistant being class 'O' Certified. This certification means this tape has an added level of protection where limited combustibility is required in high-risk areas.
Thermal conductivity
Our 'cold start' foil range is ideal when heat reluctance and thermal conductivity are required. These products are formulated to protect sensitive components in various applications.
Heat reluctance
Our 'cold start' acrylic foil tapes are perfect for heat shielding in demanding applications. In situ the product will help shield components sensitive to heat.
Good in bad weather
The ultimate in all weather tapes. This tape excels in demanding temperatures from -40°C to 120°C.
This Aluminum Foil tape is available in the following sizes and amounts:
- 50mm x 50 meters - 24 rolls per box
- 75mm x 50 meters - 16 rolls per box
- 100mm x 50 meters - 12 rolls per box
Main features of the 30 Micron Aluminum Foil Tape include:
Solvent based adhesive
As a result of this foil tape being a solvent based adhesive it provides an immediate waterproofing protection after application, even before they have dried. This means rain hitting this foil tape after it has been applied is not a big issue.
This tape is also not damaged by freezing temperatures and better adheres to porous surfaces.
Ready to use
No on site extra additives are required to apply this tape.
Excellence adhesion to wood based sheathings
Ideal for light commercial products where an excellent adhesion is required.
Additional information
Storage:
This tape should ideally be stored at temperatures of 16°C to 25°C.
Please note:
This aluminum foil tape is not suitable for use with attaching Polystyrene to Polystyrene or for use with mesh.
30 Micron Foil tape technical details
| Technical data | Imperial | Metric |
|---|---|---|
| Thickness | 2.4 mils | 0.06 mm |
| Peel Adhesion | 35 oz/in | 9.7 N/25 mm |
| Shear Strength | >24 hrs @ 2.2 psi | >24 hrs @ 15.2 kPa |
| Tensile Strength | 30 lb/in | 136 N/25 mm |
| Elongation | 5% | 5% |
| Service Temperature | -40°F to 250°F | -40°C to 121°C |
| Roll Size | 2, 21?2, 3, 4 in x 60 yards | 48, 64, 72, 99 mm x 50 metres |
Application guide
Surface preparation is paramount for achieving the required bond when using this pressure sensitive adhesive. Read our Surface Preparation and Application Guide for more information on how to apply this foil tape.
Require the Material Safety Data Sheet (MSDS) for this foil tape?
If you require the Material Safety Data Sheet (MSDS) for this aluminum foil tape please do not hesitate to contact us, and we will be happy to send it to you.
Do you require a Certificate of Conformance and traceability?
If you require a Certificate of Conformance, please contact us after ordering (either by phone or email) and we will get this sent out to you with your order.
