6mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner

Additional product images

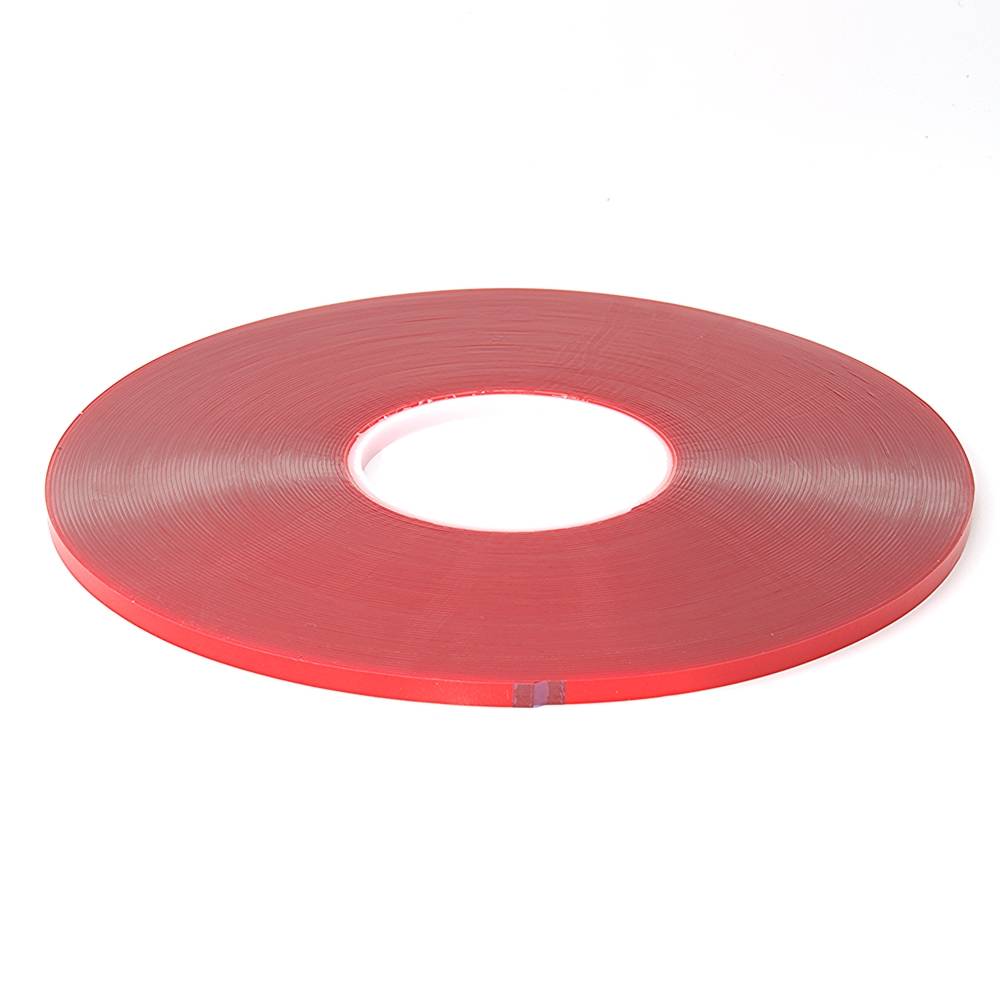

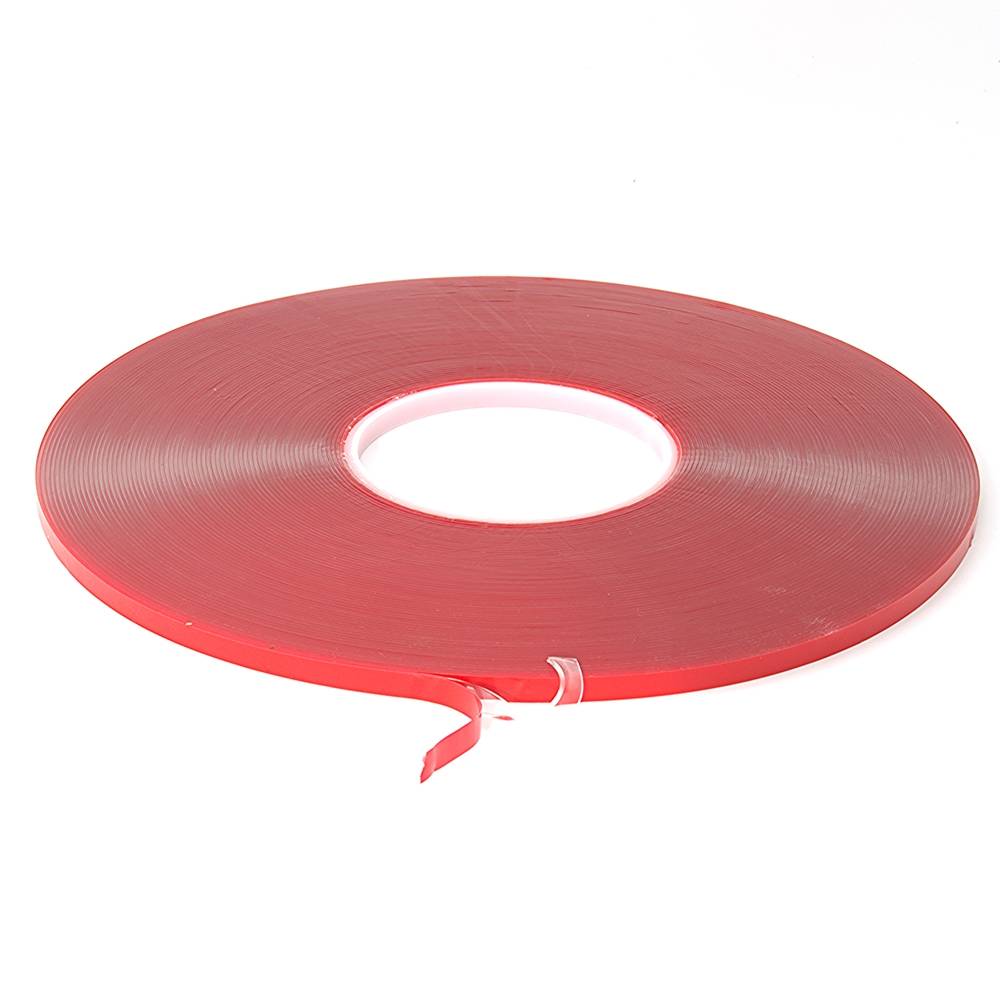

Image of 6mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner

Image of 6mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner

Image of 6mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner

Image of 6mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner

Buy in Bulk & Save

PSA4100A is ideal for bonding glass, transparent plastics and other applications which require an invisible bond line. These foams are: soft, tacky and conformable, and acts as a very good seal and bonding tape.
Read the full product description...

1 Roll Only: £10.74
Excluding Tax: £8.95
Price / Metre: £0.27

Save with Bulk Buying Options (Price per Roll)

Num. of Rolls1+10+20+
Exc. Tax£8.95£8.51£7.61
Inc. Tax£10.74£10.21£9.13

How many rolls would you like?

View other sizes of this product

PSA code: PSA4100A | Product condition: New | Stock status: In stock

Ask us a question about this product
Get a bespoke quote for this product

Orders are dispatched within 1 - 2 working days

Open your account today for 5% off your 1st order

Free standard mainland UK shipping
on all orders over £30 (excluding VAT, shipping & glue pots)

Free advice to make your products last longer


Variations of this product

Description Price
Image of 3 Metre No Nails Needed Tape Pack 3 Metre No Nails Needed Tape Pack
PSA Code: PSA0014

How many would you like?

Image of 6mm x 0.5mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner 6mm x 0.5mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner
PSA Code: PSA4050A
Buy in bulk and save

Save with Bulk Buying Options (Price per Roll)

Num. of Rolls1+10+20+
Exc. Tax£8.41£7.97£7.61
Inc. Tax£10.09£9.56£9.13

How many would you like?

Image of 6mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner 6mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner
PSA Code: PSA4100A
Buy in bulk and save

Save with Bulk Buying Options (Price per Roll)

Num. of Rolls1+10+20+
Exc. Tax£8.95£8.51£7.61
Inc. Tax£10.74£10.21£9.13

How many would you like?

Image of 6mm x 2mm x 16.5 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner 6mm x 2mm x 16.5 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner
PSA Code: PSA4200A
Buy in bulk and save

Save with Bulk Buying Options (Price per Roll)

Num. of Rolls1+10+20+
Exc. Tax£10.47£9.95£9.30
Inc. Tax£12.56£11.94£11.16

How many would you like?

Image of 12mm x 0.5mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner 12mm x 0.5mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner
PSA Code: PSA4050B
Buy in bulk and save

Save with Bulk Buying Options (Price per Roll)

Num. of Rolls1+6+10+
Exc. Tax£16.82£15.97£15.14
Inc. Tax£20.18£19.16£18.17

How many would you like?

Image of 12mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner 12mm x 1mm x 33 Metres Foamed Clear Structural Acrylic Gel Tape With Red Liner
PSA Code: PSA4100B
Buy in bulk and save

Save with Bulk Buying Options (Price per Roll)

Num. of Rolls1+6+10+
Exc. Tax£17.93£16.99£16.13
Inc. Tax£21.52£20.39£19.36

How many would you like?


Our 1mm Thick Gel Tape, PSA4100, is a 33 Metres foamed Structural Acrylic Gel tape. This tape is used widely within the Point of Sale (POS) and signage industries for demanding applications.

Consequently, this adhesive gel tape forms powerful bonds to high energy surfaces such as glass, metal, and plastics while having excellent ageing, UV, and temperature resistances.

Our Gel Tapes will create a permanent, reliable bond for either indoor or outdoor applications, and their structure will allow for differential rates of expansion - if bonding dissimilar materials.

This thick foamed structural acrylic gel tape is ideal for bonding glass, clear plastics and other applications which require an invisible bond line. These foams are soft, tacky and conformable, and they act as a perfect seal and bonding tape. Industries where this tape has ideal application uses include, but are not limited to, the solar energy industry, the glass partitions industry, the windows industry, and doors and safety glass manufacture.


Length

33 metres, offering ample tape for large projects or multiple applications.

Material

A foamed acrylic gel provides exceptional strength and durability while remaining flexible.

Adhesive Type

Structural acrylic is designed for heavy-duty bonding that can withstand extreme conditions.

Colour

Transparent, making it an inconspicuous choice for visible areas, ensuring a neat and professional appearance.

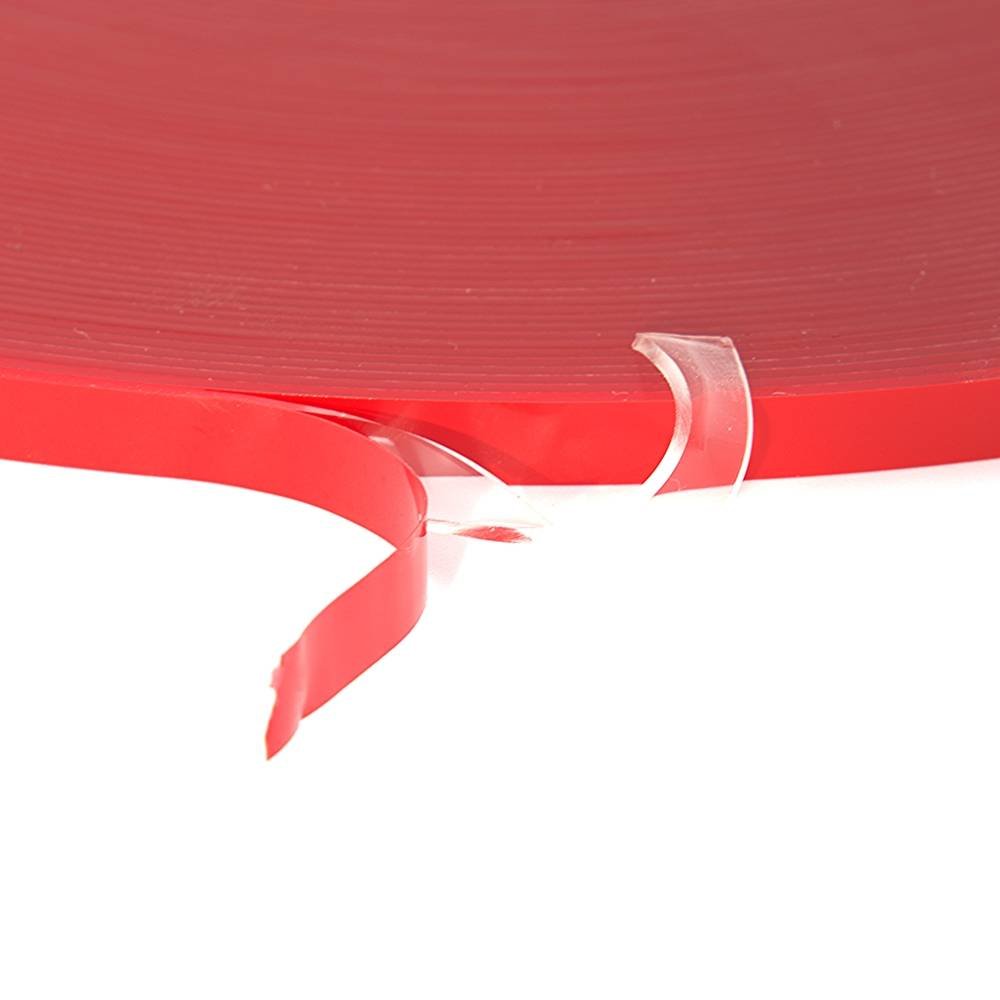

Liner

Red liner, allowing for easy peel-and-stick application and reducing the time needed for installation.

Thickness

Optimiseds for balance between flexibility and strength, providing a secure bond without adding significant bulk.

Weather Resistance

Excellent performance under various weather conditions, including high humidity and temperature fluctuations.

Versatility

It is suitable for bonding a wide range of materials, including metals, plastics, and glass, making it a versatile choice for multiple applications.

Application Uses

This tape is ideal for applications requiring a robust and durable bond, such as:

Automotive assembly

Attaching exterior trim, badges, and other components.

Construction

Bonding panels, glass, and other structural elements where welding or mechanical fasteners are not desirable.

Signage and Displays

Secure mounting of signs, displays, and decorative elements, both indoors and outdoors.

Electronics

Assembling components in devices where a robust and reliable bond is necessary.

Construction information

Easy release liner on film paper

This gel tape has a total unity of viscoelastic core section and pressure-sensitive adhesive surfaces, with an easy-release paper liner.


Design factors & tape usage information

Thickness of tape to be used

The thickness of the tape selected should depend on the following factors

  1. The rigidity of the substrates to be bonded
  2. The irregular nature of the two surfaces
  3. The amount of pressure to be applied to ensure good adhesive 'wet out'
  4. The mismatch of the two surfaces must be less than half the tape thickness to ensure good surface contact under pressure
  5. To ensure good adhesive 'wet out', a test piece of the substrate - that has an uneven surface - should be bonded to a clear acrylic under pressure. This will allow you to see what the contact area is
  6. Semi-flexible materials, such as some PVC materials, with a memory, need thicker tape to distribute the stress resulting from the material's memory
  7. Choosing the correct thickness of tape will ensure that the ultimate bond will be achieved

How much tape do you need to use in an application?

How much tape you need to use depends on a number of factors. These factors include:

  1. What are the substrates to be bonded?
  2. What is the load bearing? Is it static or dynamic?
  3. Is the material subjected to exposure to extremes of weather, etc...?
  4. Is there constant force or spasmodic forces affecting the bond?

To help you understand what is right for you, as a general rule, 0.025m2/kg of tape should be used to hold 1kg in a static situation. However, this will vary from application to application.

There is a safety factor built into this equation. Still, you should always test the tape in your application thoroughly.

This foamed acrylic tape will hold substantial loads, but a safety factor is important in critical structural applications.


Features & benefits information

This tape has several key features & benefits. These include:

  • That this tape isolates dissimilar metals
  • That it is virtually invisible
  • That it has a high temperature tolerant
  • That it is solvent /moisture resistant
  • That it has a high cleavage strength
  • That it leaves surface intact

Along with this, this structural acrylic gel tape has:

  1. Excellent high performance capabilities
  2. High resilient performance in all weather conditions
  3. Load and stress properties, which spread both of these across the plane of the bond - there are no stress points that arise with mechanical fixings
  4. The ability to stop metal fatigue and mechanical degradation - that you get with fixings such as screws, nuts and bolts
  5. Properties such as vibration, dampening, shock, absorption, sealing, thermal expansion or contraction to take up conformability
  6. Aesthetic enhancement - no screw heads are visible.
  7. Has great invisible fixing and bonding properties
  8. properties that help to reduce re-finishing work touching up and clean up time, which is required with other forms of bonding fixing
  9. The ability to be: quick to use, clean, safe, economical, and improves productivity
  10. The ability to not damage substrates to be bonded - no mechanical fixing punctures / holes
  11. Properties which help: stop rusting, to allow a complete seal to be achieved

Advantages of a Viscoelastic foamed acrylic gel tapes

Our foamed acrylic tapes are made of viscoelastic acrylic copolymers and monomers, which have a filler comprising of glass microspheres.

The tape is extruded, and the curing process is by ultraviolet (UV) light; this allows very thin foams to be produced from 0.25mm to thicker foams - up to 3mm thick foam tape - using the same process. The foam used in this tape is naturally tacky (sticky) and has good adhesive properties.

Due to the strength of this type of tape, it benefits you, as in most cases, it does not require holes to be drilled, no rivets to the head, epoxies to cure, or weld distortion.

Along with this, these tapes eliminate corrosion between dissimilar metals and compensate for thermal expansion differences while providing vibration and sound-dampening properties.

Our gel tapes are ideal when an immediate adhesion is required; you need to bond dissimilar materials, seal joints or just bond thin substrates.


What makes our Viscoelastic foamed acrylic gel tapes bond so well?

The viscoelastic properties allow the adhesive to flow into the microscopic surface of the materials being bonded. The adhesive bond is powerful when there is a good 'wet out', enabling maximum adhesive contact under pressure with the substrates to be bonded.

Abrading the surface to be bonded actually improves the strength of the bond. This abrading creates a rough surface for a greater area for the adhesive to key into.

Along with this, the elastic characteristics of the foam give it excellent internal cohesive strength to support loads in both static and dynamic shear. This also gives the foam excellent peel adhesion strength and is soft and very flexible, which means it has great conformability.

The foam also has excellent elasticity due to the high internal cohesive strength of the foam. It will radius well (go around curves).


Application information

  1. Ensure that the surfaces to be bonded are completely clean and free from dust and grease
  2. The surfaces to be bonded should be dry and free from any loose particles
  3. The best cleaning medium is a solvent such as isopropyl alcohol applied with a clean cloth or tissue
  4. To attain the optimum bond, sufficient pressure should be applied to the surface area to be bonded. To ensure good adhesive 'wet out,' typical pressure should be 15psi = 100kpa
  5. The adhesive is pressure sensitive, and best results are achieved with maximum surface contact under pressure
  6. 50% of the optimum bond strength will be achieved after 20 minutes. 90% is achieved after 24 hours. 100% is achieved after 72 hours.
  7. Avoid significant load bearing to the bond directly after application
  8. Recommended application temperature +20°c to +36°c
  9. Minimum application temperature should not be below +10°c
  10. Certain surfaces will require priming or sealing, such as porous surfaces - plaster & concrete, also absorbent surfaces such as wood & fabrics
  11. Metals with oxidised surfaces, such as aluminium, copper & brass, may need priming. Low energy surfaces such as polypropylene plastics containing aggressive plasticisers may also need treatment

Technical information

DescriptionUnit of measurementTechnical Value
Carrier Acrylic Foam
Adhesive Acrylic
Colour Clear
Thickness mm ins 1.0(-/+0.1) 0.039 (-/+0.004)
Release liner Red PE / Paper
180° Peel Adhesion
ASTM D-3330
g/25mm lbs/in 2700 6.0
Tensile adhesion
(T-Block Test)
ASTM D-897
g/cm2 lbs/in2 7030 100
Density of foam kg/m3 lb/ft3 1000 62
Dynamic Sheer
ASTM D-1002
g/cm2 lbs/in2 To Stainless Steel, Room temp after 24 hours
4900 70
Temperature resistance short term °C °F 150 302
Temperature resistance long term °C °F 90 194
Low temperature resistance °C °F -40 -40
U.V Resistance Good

Application guide

Surface preparation is paramount for achieving the required bond when using this pressure-sensitive adhesive. Read our Surface Preparation and Application Guide for more information on how to apply this foam tape.


Require the Material Safety Data Sheet (MSDS) for this structural acrylic tape.

If you require the Material Safety Data Sheet (MSDS) for this acrylic tape, please do not hesitate to contact us, and we will be happy to send it to you.


Do you require a Certificate of Conformance and traceability?

If you require a Certificate of Conformance, please contact us after ordering (either by phone or email) and we will get this sent out to you with your order.
